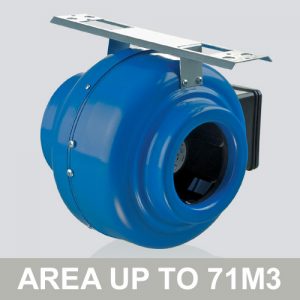

VKM – Centrifugal Inline Fan (125mm)


Model: 125
Max. Capacity: 355m3/hr
Max. Power Consumption: 75w
Technical Specifications & Dimensions: View Additional Information & Specifications Tabs below

Please note that the lead and plug option is suitable forĀ  DIY install. However if you want to use this product in conjunction with speed controllers or other accessories an electrician will be required to hardwire them to the fan. For this reason, if you are purchasing accessories, we suggest the option without the plug and lead.

$194.00$274.00

VKM Centrifugal Inline Fans

View additional information tab for specifications and technical information.

The VKM is a centrifugal inline exhaust fan that is a quality fan perfect for subfloor ventilation installations. These inline fan systems are a great and affordable solution for areas where several exhaust points are necessary. Being an inline fan, the VKM can be mounted in several locations within the floor space depending on the situation. Use our diagrams in the Specifications & Dimensions tab to guide you to installation methods. We have a full range of accessories, parts and kits available to help you with your DIY subfloor installation. For accessories scroll down the page, for kits, see the link in the sidebar or menu option.

The VKM centrifugal inline fan 125mm features a steel casing and polymeric coating making it a premium product over its plastic counterparts. It can be mounted on a wall or ceiling and on any angle. Fastening brackets (mounting brackets) are included and the fan is powered through its external terminal box.

VKM Centrifugal Fan Features

  • Long life ball bearing motor
  • Suitable for continuous running
  • IP X 4 rated motor
  • Includes mounting brackets
  • Overheating protection with automatic restart
  • Dynamically balanced turbines
  • Speed variable (with purchase of VKM Speed Controller accessory, see below)

Typical Installation Diagram of a Sub Floor System with Inline fan:

sub-floor-diagram

SKU: EXVUV125 Categories: ,
Type Of Fan

Motor Type

Extract Capacity (free flow)

Power Consumption On High (Watts)

Noise (at 3m on low)

Fan Hole Size

Installation

Fan Brand

Warranty On Fan

Disclaimer

Accessories
