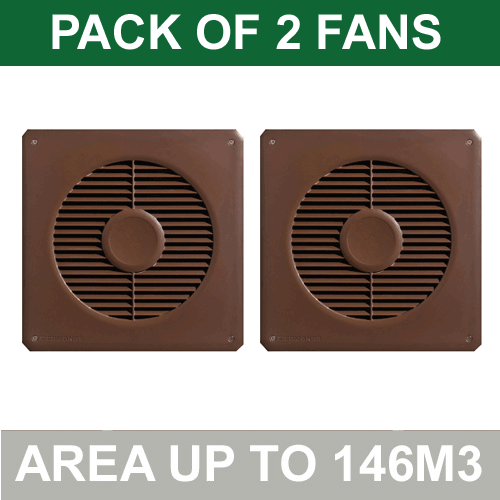

DC Underfloor Ventilation Fan In Brown – [Pack of 2 Fans]

$878.00 $560.00

Product Description

Model: 24v DC Wall Mounted
Max. Capacity: 730m3/hr on high speed
Max. Power Consumption: ONLY 30w
Technical Specifications & Dimensions: View Additional Information & Specifications Tabs below

Introducing the Underfloor Ventilation Fan…

The Underfloor Ventilation fan has a highly efficient DC motor. It is a top quality product, designed to effectively remove underfloor damp and odours. The reliable German motor ensures the fan is suitable for continuous operation, although the fan can be purchased with a 24 hour timer (see accessory below) so you can specify operating hours.

It can be installed in the sub-floor brickwork or wall and replacement air holes placed into the opposite wall. The fan will exhaust air from your underfloor space while replacement air will enter from the breather holes causing a cross flow ventilation pattern.

This underfloor ventilation fan is set to exhaust mode, but the fan and motor housing can be simply reversed to allow it to convert to an air inlet ventilator.


  • Packaged together is (2) DC Underfloor Ventilation Fans
  • High energy efficiency – can run 24/7
  • Removes damp stale air and reduces mould build up from your underfloor area
  • Very low running costs
  • High flow rates
  • Easy and safe to install – No electrician required
  • Designed to run in moist environments
  • Quiet operation
  • Slim lourve design
  • Comes in 2 colours (this listing is for the brown model) but can be easily painted to suit

Very low running costs – continuous operation cost as low as $13 a year (based on 21c/kWh). This fan is installed in the sub-floor brickwork by removal of one full brick and part removal of adjacent bricks above and below. No electrician is required. A 24v/240V adaptor is provided for connection to a standard power point.


  • Throat diameter: 250mm
  • Motor: 30W, 24VDC
  • Flow rate Δp=0: Min: 275m3/h Max: 730m3 /h
  • Line voltage: 100-240VAC 50/60Hz
  • Colours: White and Brown
  • Warranty – 2 Years.

Additional information

Type Of Fan


Motor Type

Axial – appropriate for short duct runs.

Extract Capacity (free flow)


Power Consumption On High (Watts)


Noise (at 3m on low)


Fan Hole Size


Recommended Subfloor Size (based on 5 air changes)

Up to 146m3


Finally this fan is very easy to install as it comes with a plug – no electrician required!

Fan Brand


Warranty On Fan

Edmonds – The manufacturer offers a 2 year warranty (1 year on the powerpack). View manufacturers website for more information.

SKU: W-EXBRECOBR-X2 Categories: , ,
